    Product Details

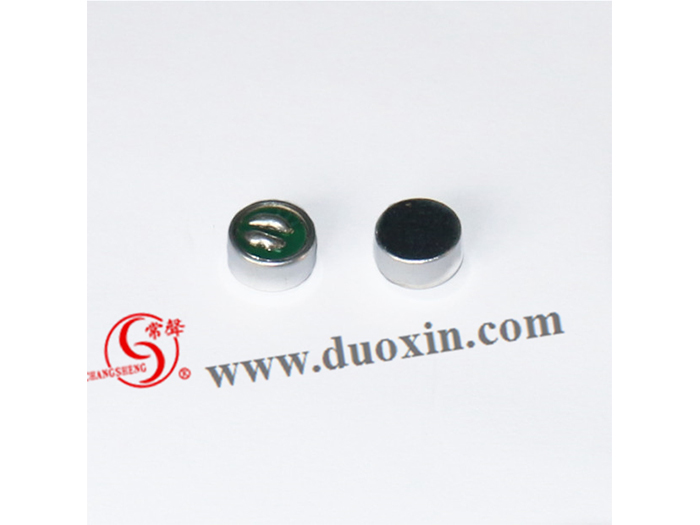

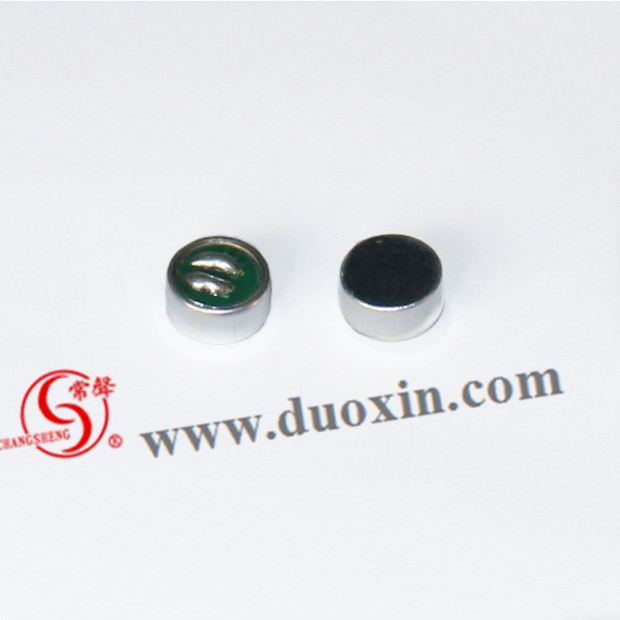

    Model No.DGO9745CD
    Sensivity(0dB=1v/μbar,1KHz)-36dB ~ -46dBOperation   Voltage(Max./Std.)4.5V
     Impedance Low impedance(2.2KΩ-30%)Resistance(RL):2.2KΩ
    Directivity Omni-directinalCurrent Consumption:Max.0.5.mA

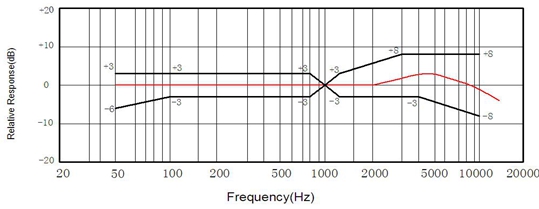

    Frequency20~16,000HzSensitivity ReductionWithin -3dB at 1.5V
    Max.operation voltage10VS/N RatioMore than 58dB
